PVD HYB208 Coated CNC Gear Insert for Difficult Materials - Left-Hand Insert WD-8967/09 (L) (T16)

Name: PVD HYB208 Coated CNC Gear Insert for Difficult Materials LeftHand Insert WD896709 L T16
Brand: Hanyuhaoyang
Price: 1 USD

Quality PVD HYB208 Coated CNC Gear Insert for Difficult Materials - Left-Hand Insert WD-8967/09 (L) (T16) for sale

Brand Name : Hanyuhaoyang

Model Number : WD-8967/09 (L) (T16)

Place of Origin : CHINA

MOQ : ten PCS

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : ten million PCS

Delivery Time : It is determined according to the customer's order.

Packaging Details : Tight packaging, multiple layers of wrapping

type : Special gear series

Coating : PVD

model : WD-8967/09 (L) (T16)

Origin : CHINA

Contact Now

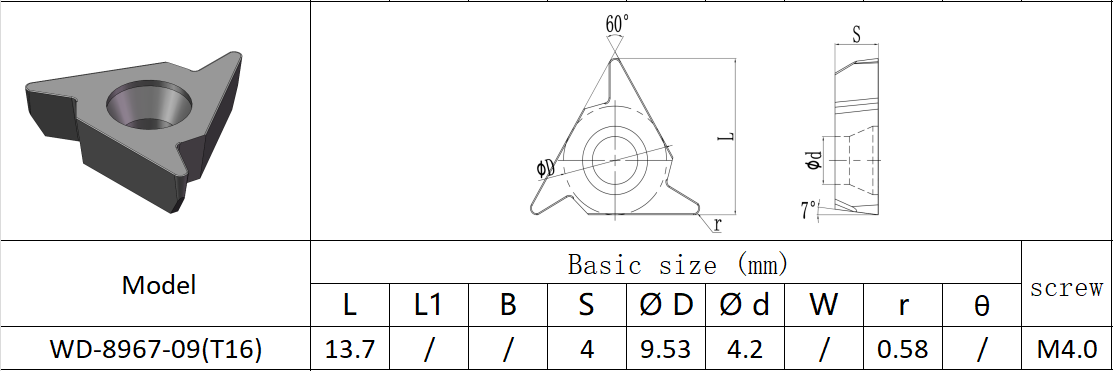

CNC Gear Insert WD-8967/09 (L) (T16) – PVD HYB208 Coated

Insert Model: WD-8967/09 (Left-hand insert) (T16)
Coating: HYB208

CNC gear inserts are specialized indexable inserts used for gear machining. They produce accurate tooth profiles on workpieces through various processes such as milling, shaping, and hobbing. These tools are essential for achieving high-efficiency and high-precision gear manufacturing in modern industrial applications.

PVD HYB208 Coated CNC Gear Insert for Difficult Materials - Left-Hand Insert WD-8967/09 (L) (T16)

Gear Inserts Application Overview

Application Field	Specific Component / Sub-assembly	Typical Gear Type / Machining Method
Automotive Manufacturing	Transmission Gears	Spur Gears, Helical Gears (shaping / hobbing)
	Synchronizer Hub	Spur Gears, Face Gears (shaping)
	Reverse Gears	Spur Gears (shaping)
	Differential Planet Gears & Side Gears	Bevel Gears (milling / shaping)
	New Energy Reducer Gears	Helical Gears (hobbing / skiving)
Aerospace	Engine Accessory Gears	High-Precision Spur Gears, Helical Gears (shaping)
	Landing Gear Actuator Gears	Internal Gears, Sector Plates (shaping)
	Fuel Pump Gears	Small Precision Spur Gears (hobbing / shaping)
Wind Power Energy	Yaw Ring Gear	Internal Ring Gear (shaping)
	Pitch Gearbox Gears	Spur Gears, Helical Gears (hobbing / shaping)
	Main Gearbox Planetary Gears	Ring Gears, Planet Gears (shaping / hobbing)
Industrial Robotics	RV Reducer Cycloidal Gear	Cycloidal Gear (special milling / shaping)
	Harmonic Reducer Flexspline & Circular Spline	Internal Gears, External Gears (shaping)
Construction Machinery	Slewing Bearing Ring Gear	Internal Gears, External Gears (shaping)
	Travel Reducer Gears	Spur Gears, Helical Gears (hobbing / shaping)
Machine Tool Manufacturing	Headstock Shift Gears	Multi-Gear Clusters (shaping)
	Indexing Gear Plate	Face Gears (shaping)
Shipbuilding & Offshore	Marine Gearbox Gears	Spur Gears, Helical Gears (hobbing / shaping)
	Lifting System Rack	Racks (shaping)
Mold Manufacturing	Gear Mold Cavity	Powder Metallurgy Gear Cavity (milling / shaping)
	Slider Rack	Small Precision Rack (shaping)

Frequently Asked Questions

Q: Are you the original manufacturer of the inserts?

A: Yes, we are the original factory for both standard and non-standard inserts with a 14-year entrepreneurial history. We have our own production lines, as well as design and sales teams.

Q: How long is your delivery time?

A: Delivery time is determined according to the customer's order. You can communicate the details directly with the customer service on our website.

Q: What is the best way to contact you?
